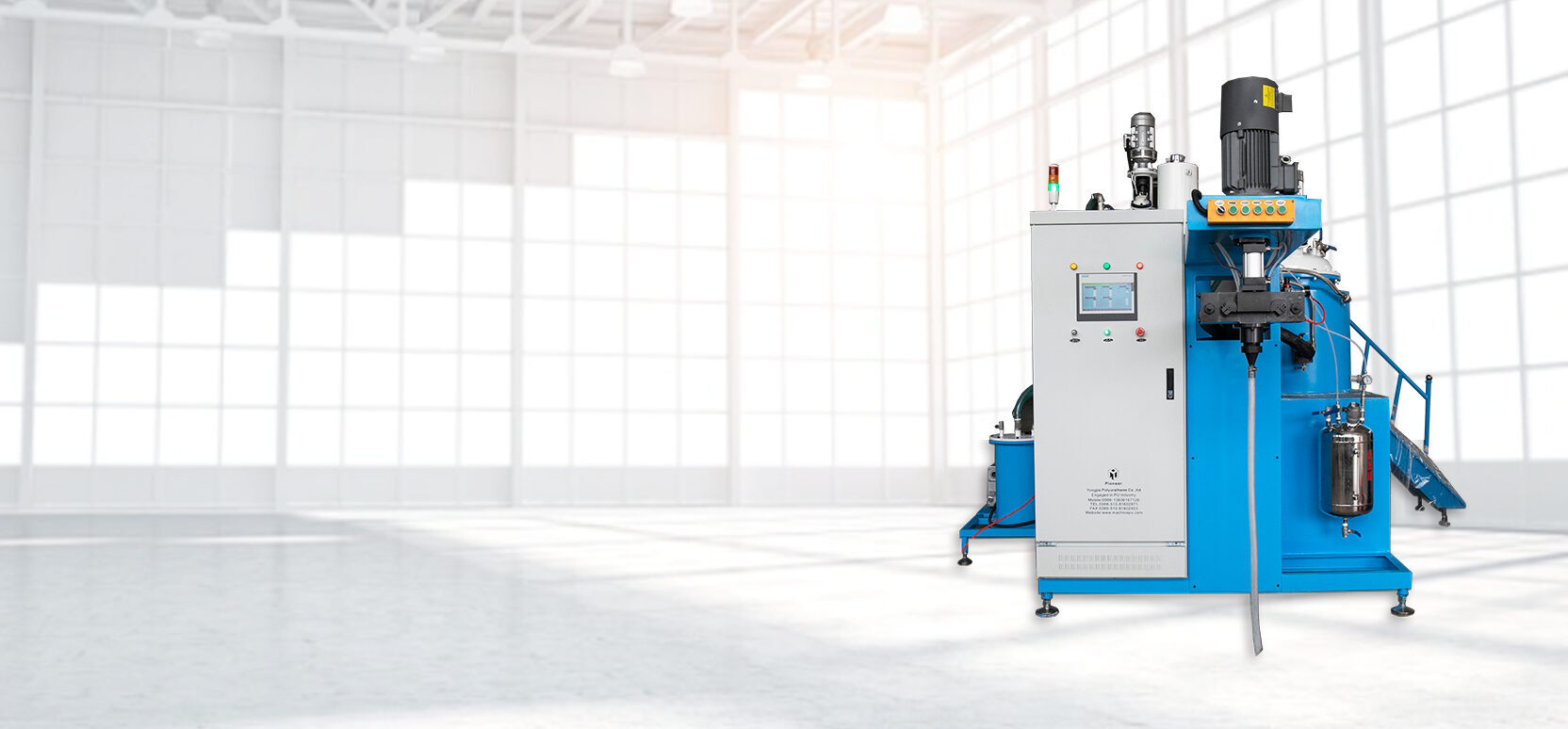

Polyurethane Casting Machine
- Short production cycle, complete production in 30 days
- Supports MDI and TDI systems
- Equipped with TDI hot air circulation heating to ensure consistent processing and stable results.
- Supports up to 5 color paste systems
- One-stop solution that can provide raw materials, cleaning agents, ovens, operating tables, etc.
- Low noise, low power, energy saving
Polyurethane Casting Machine
UREXCEED® two component high pressure polyurethane foaming machine is primarily designed with two main components: isocyanate and polyol. This machine operates by mixing these components under high pressure, resulting in the production of polyurethane foam. It is widely used in applications such as automotive seating, building insulation, and household products. The dual-component system is efficient and straightforward, making it ideal for large-scale production of standard foam materials.
Item | Technical Parameter |
Injection Pressure | 0.01-0.6Mpa |
Mixing ratio range | 100:8～20（adjustable） |
Injection time | 0.5～99.99S (correct to 0.01S) |
Tank volume | 250L /250L/35L |
Temperature control system | Heating: 31KW |
Input power | Three-phrase five-wire，380V 50HZ |
Rated power | 45KW |
Want to know more about specification of pu elastomer casting machine?
Pigment System
Mix Head
PLC and touch screen human machine interface
Working Principle Of UREXCEED PU Casting Machine
UREXCEED® PU casting machine is a specialized device used for producing polyurethane elastomers, widely used in industries such as automotive, footwear, furniture, and electronics. It is designed to precisely mix and inject polyurethane raw materials into molds, allowing for the creation of durable, high-performance products with excellent wear resistance, elasticity, and aging resistance.
01 Material Supply
02 Material Mixing
At the mixing head, the machine uses a high-precision metering system to accurately mix the components in the correct ratios. High-shear mixing technology ensures thorough integration of the raw materials, preventing uneven curing or foaming.
03 Reaction and Casting
After mixing, the materials are injected into molds or casting lines where they undergo a chemical reaction under controlled temperature and pressure. The polyurethane elastomer begins to foam and gradually solidifies. This process can be completed through heating or natural curing, depending on the required product characteristics.
04 ProcessingMolding and Curing
Once the foaming and curing processes are complete, the elastomer material is molded into the desired shape and forms the final product. These elastomer products typically exhibit excellent elasticity, wear resistance, and oil resistance, making them suitable for a range of high-performance applications.
FAQs Of UREXCEED PU Casting Machine
Our polyurethane elastomer machine is capable of producing both soft and hard elastomers, ideal for applications in automotive interiors, footwear, seals, industrial components, and more. The machine supports TDI and MDI systems, allowing you to adjust hardness, elasticity, and wear resistance according to your specific requirements.
Our pu casting machines are capable of low, medium, and high-temperature foaming, suitable for producing polyurethane elastomers with varying degrees of hardness. The technical specifications include maximum pressure, temperature range, and mixing ratio precision. These parameters can be adjusted according to your production needs.
Our polyurethane elastomer machines feature an intuitive control system, making it easy to operate. We provide comprehensive training and detailed user manuals to ensure your team can quickly become proficient in using the machine. For maintenance, we offer regular maintenance suggestions and provide 24/7 after-sales support to ensure the machine stays in optimal condition.
Our polyurethane elastomer machines are compatible with both TDI and MDI systems, and can handle a wide range of raw materials. The machine is designed to be flexible, allowing you to adjust formulas and material inputs as per your specific production requirements.
The price of our pu casting machine varies depending on the specifications and customization options. To provide you with the best competitive pricing, we recommend discussing your specific needs and production goals with our sales team. We will provide a tailored solution and quote accordingly.
We provide a one-year warranty on our polyurethane casting equipments, and our after-sales services include remote technical support, routine maintenance, and spare parts supply. Additionally, we offer training services to ensure your team can operate and maintain the equipment efficiently. Any technical issues will be handled by our support team promptly.
Our elastomer machines are equipped with multiple safety features, such as overload protection, temperature control, and safety locking systems. All machines meet international safety standards. We also provide safety operation guidelines to ensure the safe use of the equipment.
Our casting machines are designed with energy-saving technology to reduce energy consumption, which helps lower operational costs. We also optimize machine configurations based on your production needs to maximize energy efficiency while maintaining high-quality production standards.
Yes, we offer customized solutions for our polyurethane elastomer machines. Whether it’s the size, configuration, functionality, or compatibility with specific raw materials, we can design a machine tailored to your exact production requirements.
If you are interested in our polyurethane casting equipment, please contact us immediately
