Cold Chain Product Catalog
Moulds, PU foaming machines, turnkey production lines and materials & hardware — choose what fits your project
Cold Chain Moulds
Vacuum forming, foaming, door and punching moulds for refrigerator, freezer, display cabinet and cooler manufacturing. Precision Aluminum 7075 / P20 steel / Q345 frame, ±0.05mm tolerance, 1,000,000+ cycle lifespan.
UVM-RL-2200
Refrigerator Inner Liner Vacuum Forming Mould
Precision aluminum alloy vacuum forming mould for refrigerator and freezer inner liner production. Polished surface finish, integrated oil heating channels, ±0.05mm cavity precision. Ideal for 200L–800L household and commercial refrigerator liner production.

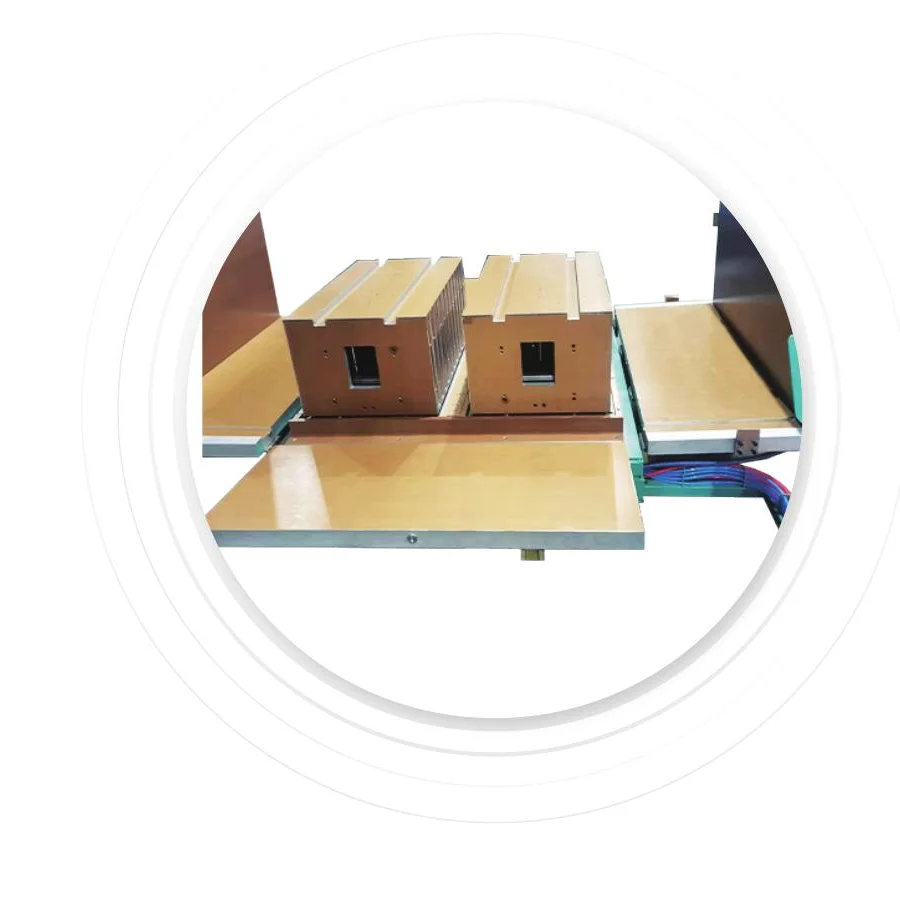

UFM-CAB-2200
Cabinet & Door Foaming Mould
Heavy-duty foaming mould with Q345 steel frame, integrated platen heating (40–55°C ±2°C), hydraulic clamping. For refrigerator cabinet, freezer cabinet and door foam filling with PU high-pressure injection.
UDM-COMBO-900
Door Combination Mould (Vacuum + Punching + Foaming)
Three-in-one door production mould combining vacuum forming, trimming/punching and foaming operations. Ideal for refrigerator doors with bottle racks (3–8 tiers configurable), beverage cooler doors and display cabinet glass doors.
UPM-PROG-400
Progressive Punching & Cutting Mould
Cr12MoV progressive die for inner liner trimming, evaporator hole punching and cabinet edge cutting. Heat-treated HRC 58-62 for 500,000+ cycle life. Compatible with 100–400 ton presses.
PU Foaming Machines
High-pressure, low-pressure, spray and glue dispensing PU foaming systems for insulation production. Output 5–1,500 g/s, Siemens/Mitsubishi PLC control, 2–4 component mixing heads.

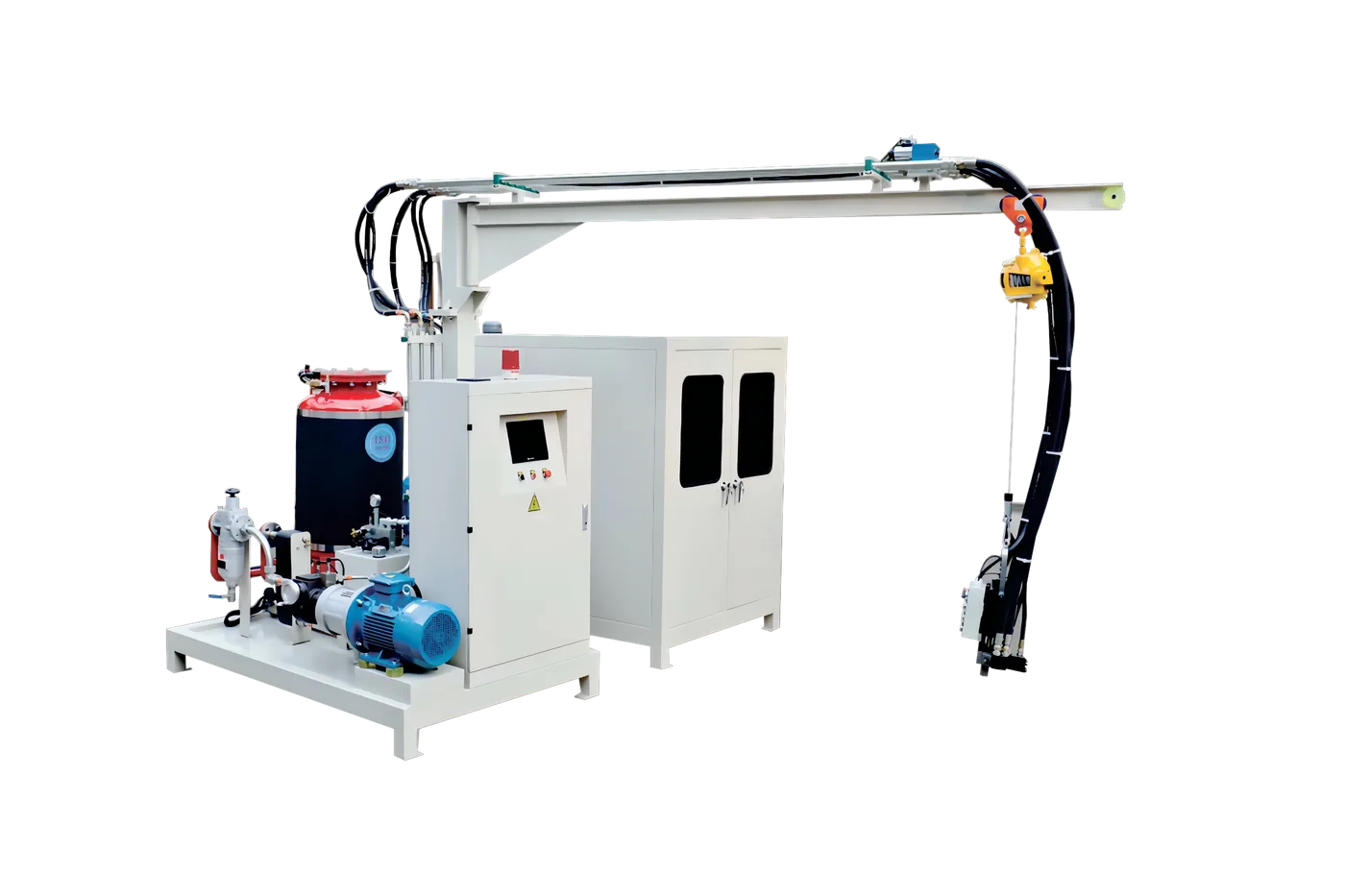

UPM-HP-1500
High-Pressure PU Foaming Machine
Industrial-grade high-pressure PU foaming machine for refrigerator, freezer and cold room panel production. Output 100–1,500 g/s, 2–4 component mixing heads, Siemens PLC control. Compatible with cyclopentane, HFC-245fa and HFO blowing agents.
UPM-LP-100
Low-Pressure PU Foaming Machine
Compact low-pressure foaming system for small-scale and irregular-geometry applications. Output 5–100 g/s, dynamic mechanical mixing, ideal for wine cellar, display case and beverage cooler foaming.
UPM-SPRAY-20
PU Spray Foam Machine (Mobile)
Mobile PU spray foam system for on-site cold room insulation, truck body insulation and roof insulation. Heated hose to 80°C, 100–160 bar pressure, 5–20 kg/min output.
UPM-GLUE-50
Servo Glue Dispensing Machine
Precision servo-volumetric glue dispenser for door seal bonding, gasket assembly and panel lamination. ±1% accuracy, compatible with hotmelt, PUR and silicone adhesives.
Turnkey Production Lines
Complete production lines for refrigerators, freezers, insulation boxes and cold room panels. Capacity 500–10,000 units/day, layout design + equipment + commissioning + training + 3-year warranty.

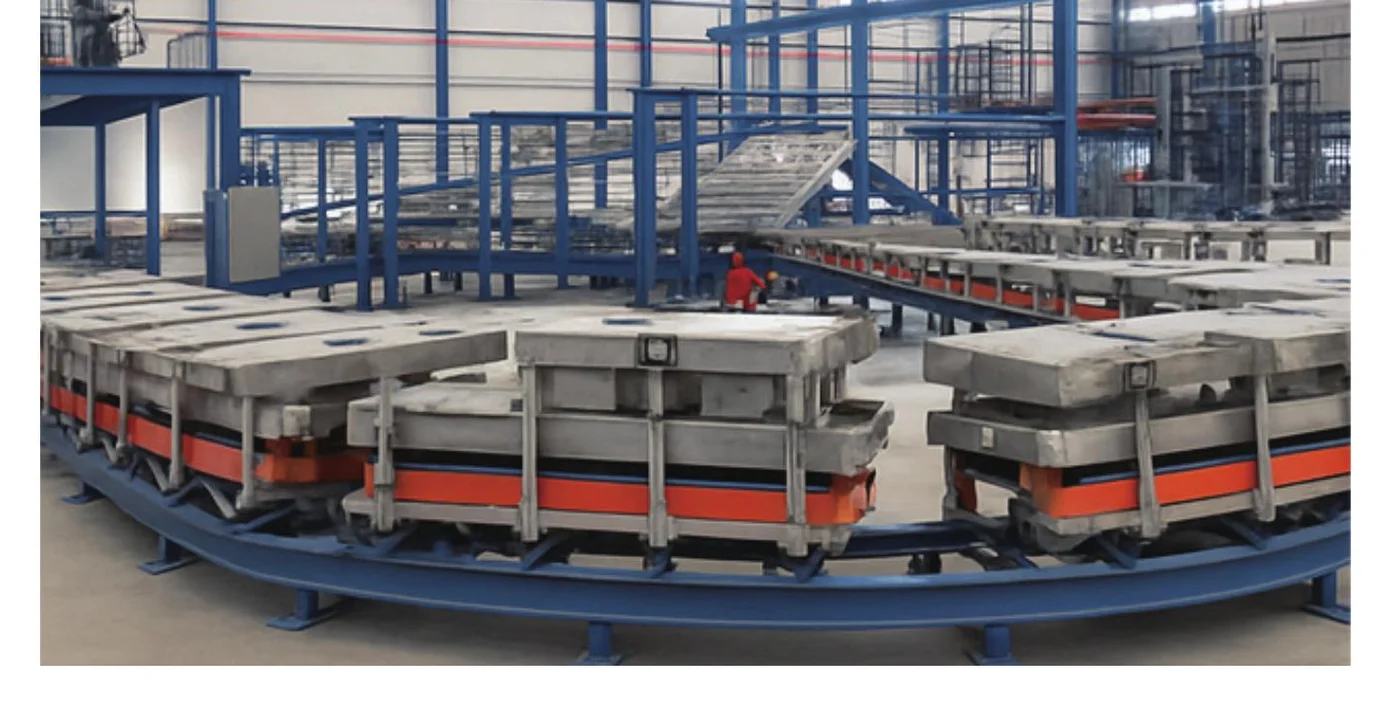

URL-RF-5000
Refrigerator & Freezer Production Line (Turnkey)
Complete turnkey production line for refrigerators, freezers and beverage coolers. Capacity 500–10,000 units/day, includes cabinet foaming, door foaming, assembly, quality control and packaging stations. Layout engineering + installation + commissioning + training included.
URL-IB-2000
Insulation Box Production Line
Semi-automatic production line for cold chain logistics boxes, medical transport boxes and seafood storage. 10L–600L size range, capacity 200–2,000 units/day.
URL-CRP-40
Cold Room Panel Continuous Production Line
Continuous sandwich panel production line for cold storage rooms, industrial freezer rooms and food processing facilities. 10–40 panels/hour, panel thickness 50–200mm.
Materials & Hardware
PU raw material systems (polyol + isocyanate + blowing agent), hinges, door seals, LED lighting, evaporators and condensers for complete cold chain equipment OEM supply.

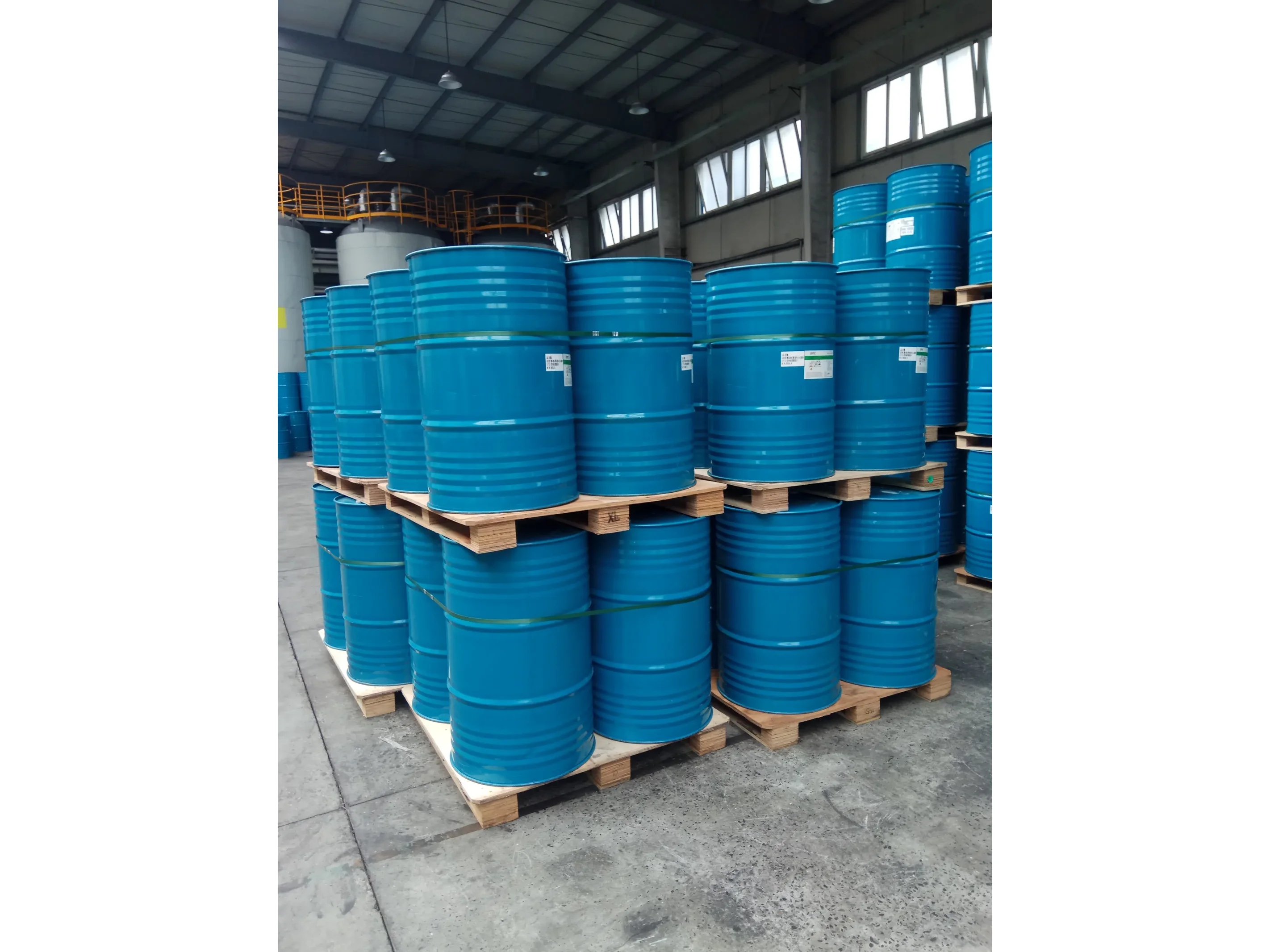

UMT-PU-SYSTEM
PU Raw Material System (Polyol + Iso + Blowing Agent)
Formulated PU raw material system for refrigerator and freezer foam. K-factor down to 0.018 W/m·K, customizable density 32–42 kg/m³, compatible with cyclopentane/HFO blowing agents.
UHW-KIT
Hardware & Accessories Kit
Complete hardware package for cold chain equipment OEM: spring-loaded hinges, PVC magnetic door seals, LED lighting strips, roll-bond / fin-tube evaporators and condensers. Container-load MOQ.
