Cold Chain Moulds

Moulds are the backbone of cold chain production. Our network covers the top mould makers in China's Chuzhou–Kunshan cluster — the same facilities that supply major global brands.

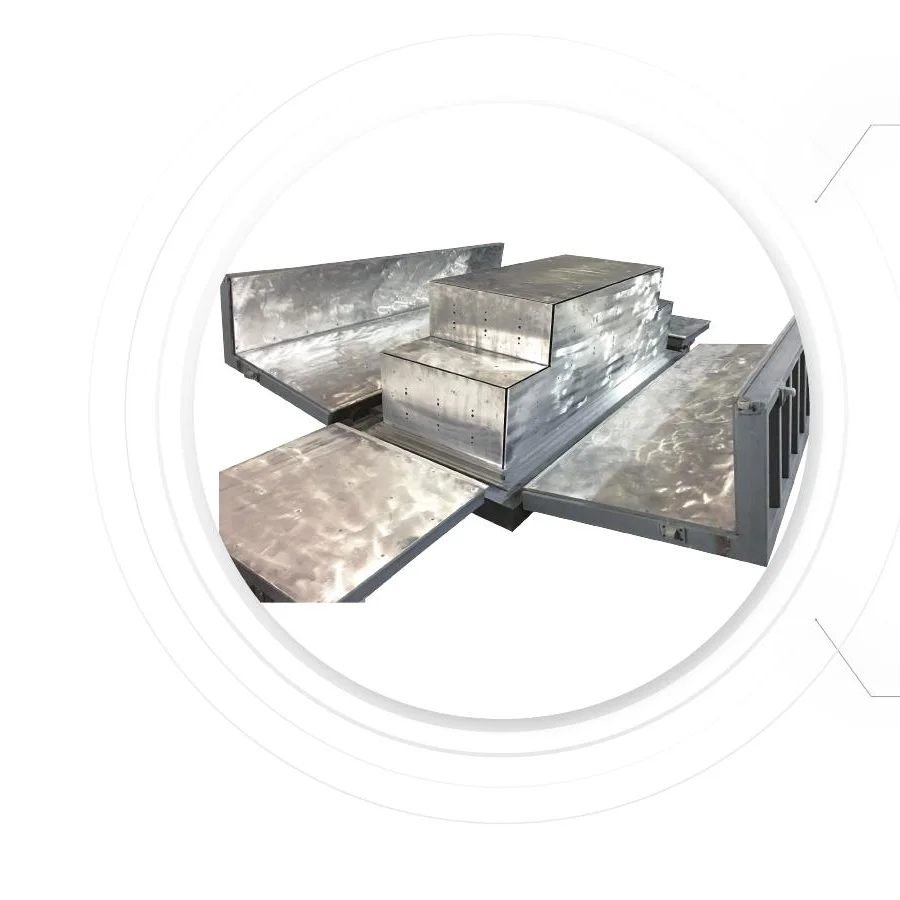

Vacuum Forming Mould — Refrigerator / Freezer Liner

UVM-RL-2200

Vacuum Forming Mould — Refrigerator / Freezer Liner

Aluminum alloy moulds for inner liner thermoforming, ±0.05mm precision

Specifications

Mould Material
Aluminum alloy A7075 / P20 steel
Size Range
800 × 500 × 1,200 mm up to 2,400 × 900 × 2,200 mm
Surface Finish
Polished / sandblasted / etched texture
Cavity Precision
±0.05 mm
Typical Lifespan
1,000,000+ cycles
Heating System
Integrated oil channels / electric heaters
Lead Time
45 – 75 days
Minimum Order
1 set

Applications

Refrigerator inner linerFreezer inner linerDisplay cabinet liner
ISO 9001CE
Request Quote for This Product
Foaming Mould — Cabinet & Door

UFM-CAB-2200

Foaming Mould — Cabinet & Door

Q345 steel framed foaming moulds with integrated heating

Specifications

Frame Material
Q345 steel welded structure
Clamping Force
5 – 50 tons hydraulic / pneumatic
Temperature Control
40 – 55°C ±2°C heated platen
Size Range
600 × 600 mm up to 2,200 × 900 mm
Cycle Time
4 – 8 min per unit
Automation Level
Manual / semi-auto / fully-auto
Lead Time
60 – 90 days
Minimum Order
1 set

Applications

Refrigerator cabinet foamingFreezer cabinet foamingDoor foaming
ISO 9001CE
Request Quote for This Product
Door Mould — Vacuum + Punching + Foaming Combo

UDM-COMBO-900

Door Mould — Vacuum + Punching + Foaming Combo

Integrated door production moulds for refrigerators, coolers and showcases

Specifications

Type
Vacuum forming + punching + foaming combo
Door Size
400 × 1,000 mm up to 900 × 2,100 mm
Bottle Rack Variants
3 – 8 tiers configurable
Colour / Finish
White / black / custom texture
Cavity Count
Single / double / quad
Lead Time
50 – 80 days
Minimum Order
1 set

Applications

Refrigerator doorBeverage cooler doorDisplay cabinet door
ISO 9001CE
Request Quote for This Product
Punching & Cutting Mould

UPM-PROG-400

Punching & Cutting Mould

Progressive press moulds, Cr12MoV, HRC 58-62

Specifications

Type
Progressive punching + trimming
Material
Cr12MoV die steel, heat-treated HRC 58-62
Accuracy
±0.02 mm
Press Compatibility
100 – 400 ton presses
Changeover Time
< 30 min
Lead Time
30 – 60 days
Minimum Order
1 set

Applications

Door liner trimmingEvaporator hole punchingCabinet edge cutting
ISO 9001
